Reversible flawless hammer crusher product parameters:
|
Model |
PCKW1012 |
PCKW1214 |
PCKW1416 |
PCKW1618 |
|
Rotor size(mm*mm) |
1000×1200 |
1200×1400 |
1400×1600 |
1600×1800 |
|
Rotor speed(r/min) |
987 |
985 |
740 |
675 |
|
Size of feed port(mm) |
300×1200 |
400×1400 |
400×1600 |
550×1800 |
|
Maximum feed size(mm) |
100 |
100 |
150 |
200 |
|
Discharge particle size(mm) |
0-10 |
0-10 |
0-10 |
0-10 |
|
processing capacity(Tph) |
50-100 |
80-180 |
150-250 |
200-350 |
|
Motor power(kw) |
132-160 |
160-220 |
280-315 |
315-500 |
|
Weight(kg) |
9000 |
15000 |
28000 |
38000 |
|
Outline size |
3200×2400×1700 |
3500×2700×2050 |
3900×2900×2200 |
4200×3100×2400 |
Note: Parameters are subject to change without prior notice, please contact us.
PCKW reversible hammer crusher introduction:
PCKW reversible hammer crusher combines the advantages of hammer breaking and counter-breaking. It is suitable for medium-hard brittle materials with crushing compressive strength not more than 150Mpa, such as coking coal, anthracite, coal burning in boilers of thermal power plants. Coal gangue, gypsum, alum and other materials.
Reversible hammer crusher working principle:
After the material enters the reversible hammer crusher through the feeding hopper, it encounters the high-speed rotating hammer and is struck to the adjustable wear-resistant tooth plate at the inlet of the crusher for the first crushing. After the crushing, the particles with the same material are evenly entered. In the main crushing chamber, the secondary main crushing is carried out, and the material particles which have been homogenized in the main crushing chamber are again subjected to kinetic energy from the hammer head, and are rushed toward the toothed lining plate inside the counter-attack chamber, and rebound upward through the tooth lining plate. Once again, it is broken by the hammerhead. At the same time, the material is also crushed by the impact between each other. This cycle is repeated, and it is broken several times in the counter-attack chamber. Finally, the broken material is discharged from the discharge port, and the finely-cut material is the finished product. . Product particle size control is achieved by adjusting the gap between the rotor and the counterplate.
Reversible hammer crusher performance characteristics:
The great feature of the reversible hammer crusher is that the rotor can be reversed. This design not only can achieve perfect operation of the wet material, but also improve the utilization of the hammer head of the crusher. The performance of the whole machine is good, the crushing ratio is large, and the production capacity is high. High, uniform product size.
1. No sieve bar overcomes the problem of large humidity and easy blockage of materials;
2. The gap of the discharge opening is adjustable, the discharge granularity is uniform, the output is large, and the energy consumption is low;
3, the rotor can be reversed, so that the hammer and the broken plate are evenly worn, improving the utilization of the hammer;
4. The crushing chamber is easy to open, easy to replace wearing parts, and the main machine uses hydraulic cylinders.

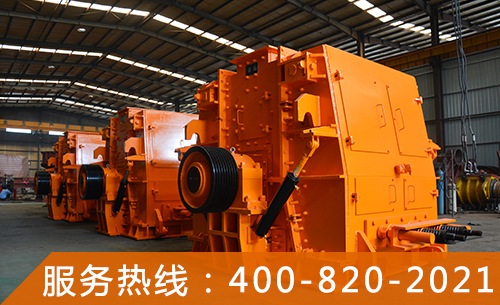

PCKW reversible hammer crusher factory pictures:

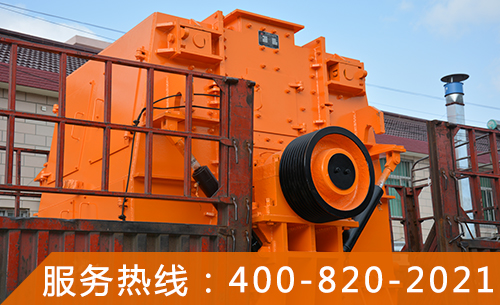

PCKW reversible hammer crusher delivery pictures:

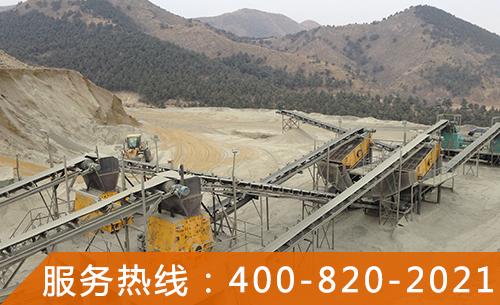

PCKW reversible hammer crusher on-site production line picture:
PCKW Reversible Hammer Crusher Video:pending upgrade
PCKW reversible hammer crusher price:
The price is determined by the model purchased by the customer, so please call the customer to request it.
