Hydraulic cone crusher parameters:
|
Model
|
Cavity
type |
Diameter |
Adjustment
range of discharge outlet (mm) |
Maximum
feed size (mm) |
Processing
capacity (t/h) |
Motor |
Weight
(kg) |
Outline |
|
| 1300 | PYFB-1313 | Standard fine form | 1295 | 13-31 | 115 | 109-181 | 160 | 22476 | 2983*1866*3156 |
| PYFB-1321 | Standard medium | 16-38 | 178 | 132-253 | 22167 | ||||
| PYFB-1324 | Standard coarse form | 19-51 | 205 | 172-349 | 22120 | ||||
| PYFB-1325 | Standard extra-coarse type | 25-51 | 220 | 236-358 | 22125 | ||||
| PYFD-1306 | Short headed fine type | 3-16 | 54 | 36-163 | 21703 | ||||
| PYFD-1308 | Short head medium | 6-16 | 78 | 82-163 | 21675 | ||||
| PYFD-1310 | Short head coarse pattern | 8-25 | 89 | 109-227 | 21789 | ||||
| PYFD-1313 | Short Head Extra Coarse Type | 16-25 | 113 | 209-236 | 21821 | ||||
| 1600 | PYFBII-1620 | Standard fine form | 1676 | 16-38 | 178 | 181-327 | 250 | 41460 | 3900*2930*3242 |
| PYFBII-1624 | Standard medium | 22-51 | 205 | 258-417 | 41087 | ||||
| PYFBII-1626 | Standard coarse form | 25-64 | 228 | 299-635 | 40834 | ||||
| PYFBII-1636 | Standard extra-coarse type | 38-64 | 313 | 431-630 | 40674 | ||||
| PYFDII-1607 | Short headed fine type | 5-13 | 60 | 90-209 | 40734 | ||||
| PYFDII-1608 | Short head medium | 6-19 | 76 | 136-281 | 40614 | ||||
| PYFDII-1613 | Short head coarse pattern | 10-25 | 113 | 190-336 | 40531 | ||||
| PYFDII-1614 | Short Head Extra Coarse Type | 13-25 | 129 | 253-336 | 40374 | ||||
| 2100 | PYFBII-2127 | Standard fine form | 2134 | 19-38 | 236 | 544-1034 | 400 | 86730 | 4613*3302*4638 |
| PYFBII-2133 | Standard medium | 25-51 | 284 | 862-1424 | |||||
| PYFBII-2136 | Standard coarse form | 31-64 | 314 | 1125-1814 | |||||
| PYFBII-2146 | Standard extra-coarse type | 38-64 | 391 | 1252-1941 | |||||
| PYFDII-2110 | Short headed fine type | 5-16 | 89 | 218-463 | 89500 | ||||
| PYFDII-2113 | Short head medium | 10-19 | 113 | 404-580 | |||||
| PYFDII-2117 | Short head coarse pattern | 13-25 | 151 | 517-680 | |||||
| PYFDII-2120 | Short Head Extra Coarse Type | 16-25 | 172 | 580-744 | |||||
Note: If the parameters are updated, please contact us without further notice.
Hydraulic cone crusher introduction:
The hydraulic cone crusher is a modern high-performance hydraulic cone crusher based on the needs of customers, based on the principle of laminating crushing and the concept of multi-breaking and grinding, designed to integrate high swing frequency, optimized cavity and reasonable stroke. This series of cone crushers are generally engaged in the second or third stage of crushing, especially for materials with medium hardness or higher.
Hydraulic cone crusher principle:
When the hydraulic cone crusher is working, the rotation of the motor is rotated by a pulley or a coupling, a cone crusher drive shaft and a conical crusher cone under a urging of the eccentric sleeve. Therefore, the cone crushing wall is sometimes close to each other, and sometimes the surface of the corrugated wall fixed on the adjusting sleeve is left, so that the ore is continuously subjected to impact, pressing and bending in the crushing chamber to realize crushing of the ore.
Hydraulic cone crusher performance characteristics:
The combination of high-performance crushing chamber type and high crushing frequency makes the processing capacity of the cone crusher greatly improved. Because of the laminating crushing principle, the crushed products are mostly cubic structures, which reduce the needle-shaped materials to a greater extent. The cone crusher has a simple structure, is easy to operate, maintains, and the discharge port is convenient and quick to adjust, saving time and labor during maintenance, especially the lining plate is easy to replace quickly, reducing downtime.
When the unbreakable foreign matter passes through the crushing chamber or the machine is overloaded for some reason, the cone crusher spring insurance system realizes the insurance, and the cone crusher discharges the ore. The foreign matter is discharged from the crushing chamber of the cone crusher. If the foreign matter is stuck in the discharge port, the clearing system is used, so that the ore discharge continues to increase, so that the foreign matter is discharged into the crushing cavity of the cone crusher. Under the action of the spring, the cone crusher automatically resets the discharge port, and the cone crusher resumes normal operation. The cone crusher series crusher is divided into three types: coarse crusher cone crusher, medium crush cone crusher and fine crusher cone crusher. It can be purchased according to different needs of users.

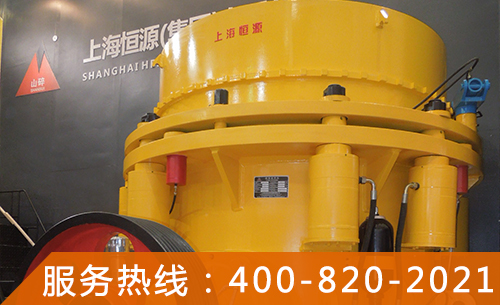

PY hydraulic cone crusher factory picture:

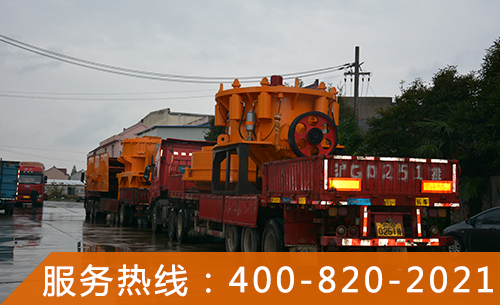

PY hydraulic cone crusher delivery pictures:

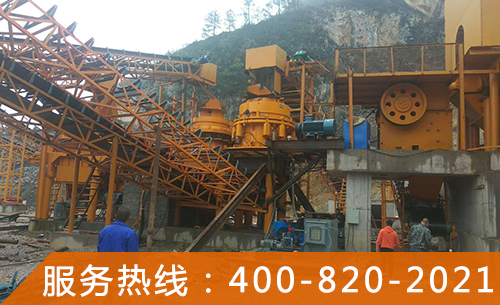

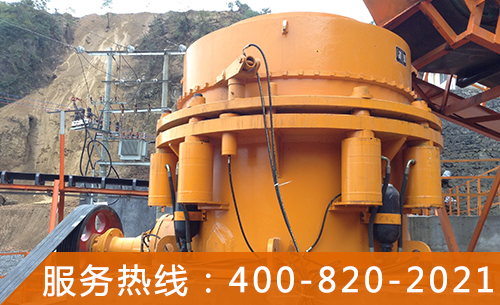

PY hydraulic cone crusher scene picture:
Hydraulic cone crusher video:pending upgrade
Hydraulic cone crusher price:
The price is determined by the model purchased by the customer, so please call the customer to request it.
