Single cylinder cone crusher parameters:
|
Model
|
Power
（kw）
|
Chamber |
Max Feedin
Size
（mm）
|
CSS Discharge Opening &Standard Capacity（t/h） |
|||||||||||
|
6 |
8 |
10 |
13 |
16 |
19 |
22 |
25 |
32 |
38 |
44 |
51 |
||||
|
HD-44 |
250 |
Supper
Coarse
|
217 |
- |
- |
- |
- |
115-202 |
123-279 |
132-297 |
140-316 |
160-360 |
177-399 |
- |
- |
|
Coarse
|
177 |
- |
- |
- |
102 |
110-220 |
118-295 |
126-316 |
135-336 |
153-382 |
169-339 |
- |
- |
||
|
Medium
Coarse
|
142 |
- |
- |
- |
98-124 |
107-266 |
115-286 |
122-305 |
130-325 |
148-333 |
163-245 |
- |
- |
||
|
Medium
|
112 |
- |
- |
- |
119-190 |
128-283 |
138-303 |
148-324 |
157-345 |
179-286 |
198 |
- |
- |
||
|
Medium Fine
|
87 |
- |
- |
117 |
127-232 |
137-251 |
147-269 |
157-288 |
167-306 |
190-254 |
- |
- |
- |
||
|
Fine
|
72 |
- |
93-139 |
99-181 |
107-196 |
115-212 |
123-227 |
133-243 |
141-258 |
160-214 |
- |
- |
- |
||
|
SupperFine
|
40 |
100 |
125 |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
||
|
HD-53
|
315
|
Supper
Coarse
|
280 |
- |
- |
- |
- |
180 |
193-344 |
207-444 |
220-472 |
250-557 |
277-616 |
303-674 |
334-520 |
|
Standard
Supper
|
250 |
- |
- |
- |
- |
178-198 |
191-382 |
204-498 |
216-530 |
247-604 |
273-667 |
299-532 |
330-361 |
||
|
Coarse
|
220 |
- |
- |
- |
- |
175-194 |
188-376 |
201-491 |
214-522 |
244-596 |
269-658 |
295-524 |
324-361 |
||
|
Medium
Coarse
|
180 |
- |
- |
- |
- |
167-260 |
179-438 |
191-468 |
204-498 |
232-568 |
256-513 |
281-374 |
- |
||
|
Medium
|
140 |
- |
- |
- |
- |
204-306 |
219-456 |
234-487 |
249-519 |
284-521 |
313-418 |
- |
- |
||
|
Medium Fine
|
120 |
- |
- |
- |
200 |
216-385 |
232-413 |
247-441 |
263-470 |
299-471 |
332-379 |
- |
- |
||
|
Fine
|
90 |
- |
- |
- |
206-322 |
222-347 |
238-373 |
255-398 |
271-424 |
309-425 |
342 |
- |
- |
||
|
Supper Fine
|
70 |
- |
- |
- |
227-316 |
244-340 |
263-321 |
281-312 |
- |
- |
- |
- |
- |
||
Note: Parameters are subject to change without prior notice, please contact us.
Introduction to single cylinder cone crusher:
The single-cylinder cone crusher integrates mechanical, hydraulic, electrical, automation, intelligent control and other technologies. It is the phoenix of Hengyuan Group. Based on the experience of R&D, design, production, sales and service of crusher for more than 20 years, it combines modern industry. The development of science and technology, a new high-efficiency crusher independently developed and designed.
Principle of single cylinder cone crusher:
When the single-cylinder cone crusher is working: the motor drives the small gear of the crusher, the small gear drives the large gear, and the large gear assembly (large gear, large gear carrier, eccentric steel sleeve) drives the eccentric sleeve assembly (eccentric cylinder sleeve, eccentric copper sleeve) And the spindle assembly (spindle, inner cone, inner cone lining) is centered on the theoretical vertical line and revolves in the copper bushing. The spindle assembly can be rotated in the eccentric copper sleeve with the center line of the main shaft. When the empty machine is running, the eccentric sleeve assembly “holds” the spindle assembly and revolves along with the large gear. When the material is added to the crushing chamber, the spindle assembly (spindle, inner cone) is slowly in the eccentric copper sleeve under the resistance of the material. The rotation. The running trajectory of the inner cone appears to oscillate back and forth within the crushing chamber while rotating slowly. The material is crushed by the inner cone of the swing. The joint between the support sleeve and the frame body is pressed by the hydraulic cylinder. When the crusher falls into a non-crushable object such as a metal block, the single-cylinder moving cone is lifted by the bottom hydraulic piston to adjust the discharge port and protect the iron. Lifting and removing the role of blocking.
Single cylinder cone crusher features:
1. Support at both ends of the spindle
The main shaft floats and supports at both ends, which has large carrying capacity, compact structure and reliable and stable operation.
2. Dust seal system
Positive pressure dustproof device effectively prevents lubricant contamination and damages bearings, prolonging the service life of lubricating oil and equipment.
3. Transmission system
The transmission system adopts spiral bevel gear design, which has high bearing capacity, stable transmission and low noise.
4. Body frame optimization design
With the new boom layout, the force is more uniform, effectively avoiding the impact wear of the material on the upper frame. Non-destructive testing and acceptance are adopted to make the overall strength of the machine higher, which improves the reliability of equipment operation and prolongs the service life of the whole machine.
5. Steep cone type moving cone
The taper of the moving cone is steep and the material passing ability is higher.
6. Full hydraulic system adjusts the discharge opening and the iron protection device
The HD series single-cylinder cone crusher adopts a combination of spindle floating and hydraulic lifting control. It integrates the adjustment of the discharge opening and the overload protection function, which simplifies the structure of the crusher while ensuring performance, compared to other types. The cone crusher no longer adds additional discharge port adjustment devices and over-iron protection devices, which makes the structure of the device simpler and increases the reliability of equipment operation.
7. Advanced sliding bearing design
The sliding bearing adopts a special oil wedge design, which forms a stable lubricating oil film on the contact surface between the main shaft and the bearing, avoiding direct friction, reducing the heat generation and prolonging the service life of the bearing.
8. Safe and reliable insurance system.
The high pressure design is used to meet the low pressure demand, and the equipment has a high pressure margin during normal operation, which improves the reliability of the hydraulic system and ensures timely alarm when the machine is overloaded.

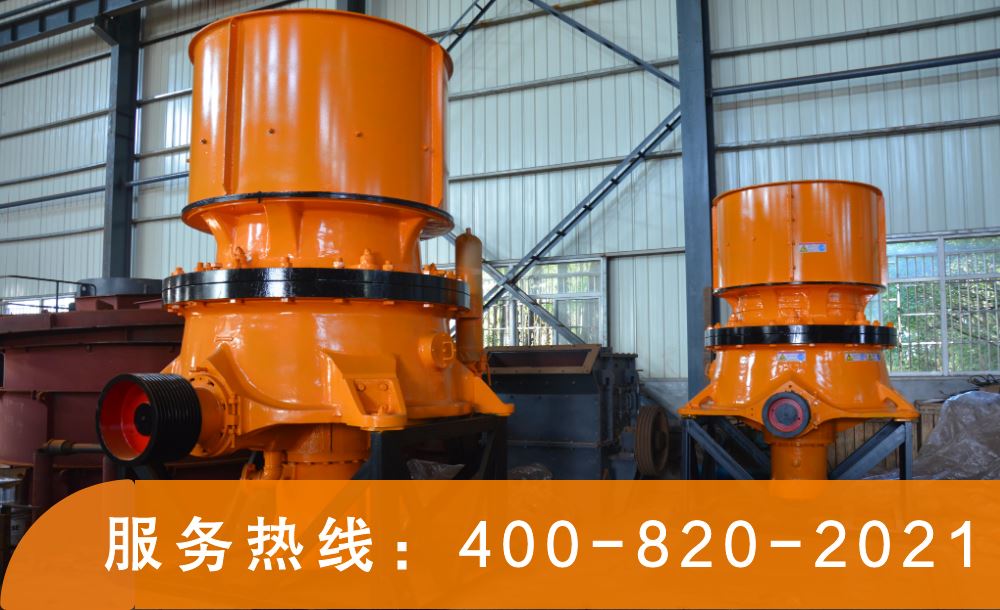

Single cylinder cone crusher factory picture:

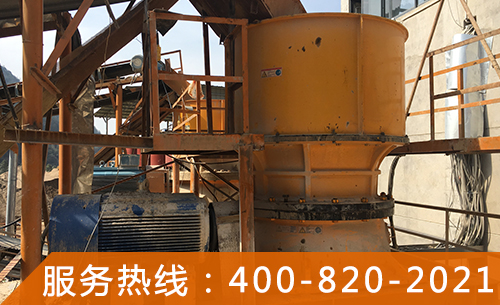

Single cylinder cone crusher scene picture:

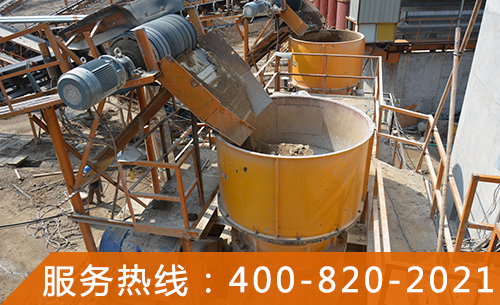

Single cylinder cone crusher scene picture:
Single cylinder cone crusher price:
The price is determined by the customer's model, so please call us or email us.
Single cylinder cone crusher purchase phone: +86-21-33781259 Email: info@pmpsj.com
