Jaw crusher parameters:
|
Model |
Dimension of inlet (mm) |
Maximum (mm) |
Adjustment range (mm) |
Capacity (t/h) |
Power (kw) |
Weight (t) |
|
PE-150*250 |
150*250 |
130 |
10-40 |
0.96-4.8 |
5.5 |
0.81 |
|
PE-250*400 |
250*400 |
210 |
20-80 |
5-21 |
15 |
2.8 |
|
PE-400*600 |
400*600 |
340 |
40-100 |
16-64 |
30 |
6.5 |
|
PE-500*750 |
500*750 |
425 |
50-100 |
45-100 |
55 |
10.3 |
|
PE-600*900 |
600*900 |
500 |
65-160 |
48-120 |
55/75 |
15.5 |
|
PE-750*1060 |
750*1060 |
630 |
80-140 |
115-208 |
110 |
27.02 |
|
PE-800*1060 |
800*1060 |
650 |
100-200 |
136-228 |
110 |
28.4 |
|
PE-870*1060 |
870*1060 |
670 |
200-260 |
290-384 |
110 |
30.5 |
|
PE-900*1200 |
900*1200 |
750 |
100-200 |
144-304 |
132 |
50 |
|
PE-900*1200II |
900*1200II |
750 |
100-200 |
144-304 |
132 |
45.8 |
|
PE-1000*1200 |
1000*1200 |
850 |
195-265 |
315-342 |
132 |
50.6 |
|
PE-1200*1500 |
1200*1500 |
950 |
150*350 |
300-800 |
220 |
83 |
|
PE-1500*1800 |
1500*1800 |
1200 |
220-350 |
450-1000 |
355 |
122 |
|
PEX-150*750 |
150*750 |
120 |
18-48 |
8-25.6 |
15 |
3.5 |
|
PEX-250*1000 |
250*1000 |
210 |
25-60 |
16-51.2 |
37/30 |
6.5 |
|
PEX-250*1200 |
250*1200 |
210 |
25-60 |
20-60 |
37 |
7.7 |
|
PEX-300*1300 |
300*1300 |
250 |
20-90 |
20-104 |
75 |
11 |
Note: If the parameters are updated, please contact us without further notice.
Jaw Crusher Introduction:
The jaw crusher produced by Jiangsu Phoenix ??Machinery Co., Ltd. is mainly used for medium-sized crushing of various ores and bulk materials. It can crush materials with compressive strength of not more than 320Mpa, which are divided into coarse and fine broken. The series of products are complete in specifications, and the feed size is 125mm ~ 1200mm, which is the primary crushing equipment.
Jaw Crusher principle:
No matter what series of jaw crushers, the working mode is driven extrusion type, and the working principle is basically the same: the motor drives the belt and the pulley, and the moving shaft moves up and down through the eccentric shaft. When the moving jaw rises, the bracket is moved. The angle between the turns becomes larger, so that the movable jaw is approached to the fixed jaw. At the same time, the material is squeezed to achieve the purpose of crushing; when the moving down, the angle between the bracket and the moving jaw becomes smaller, and the moving jaw is smaller. Under the action of the tie rod and the spring, the fixed raft is left, and the broken material is discharged from the lower mouth of the crushing chamber. As the motor rotates continuously, the crushing maneuvering cycle motion crushes and discharges, achieving mass production.
Jaw Crusher Features:
1. The deep cavity is broken and the crushing ratio is large;
2. The wearing parts have long service life and wear resistance;
3. Energy saving and environmental protection, less dust and less noise;
4. The manufacturing process is precise, and a heat treatment process is adopted for core components such as spindles, wearing parts and bearings;
5. Large-scale smashing and strict use of welding frame to ensure reliable use of products;
6. The product has lifting hooks for easy lifting.

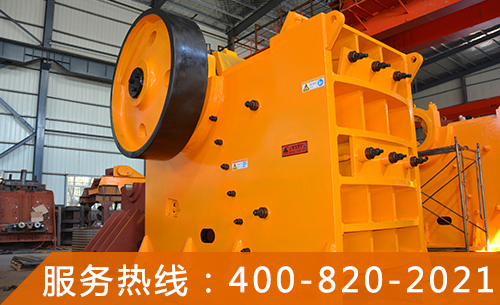

Jaw crusher factory picture:

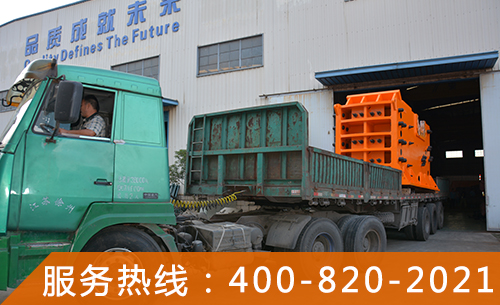

Jaw Crusher Shipment Picture:

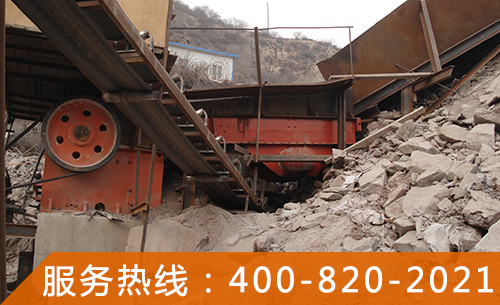

Jaw Crusher Live Picture:
Jaw Crusher Video:pending upgrade
Jaw Crusher Price:
The price is determined by the model purchased by the customer, so please call the customer to request it.
